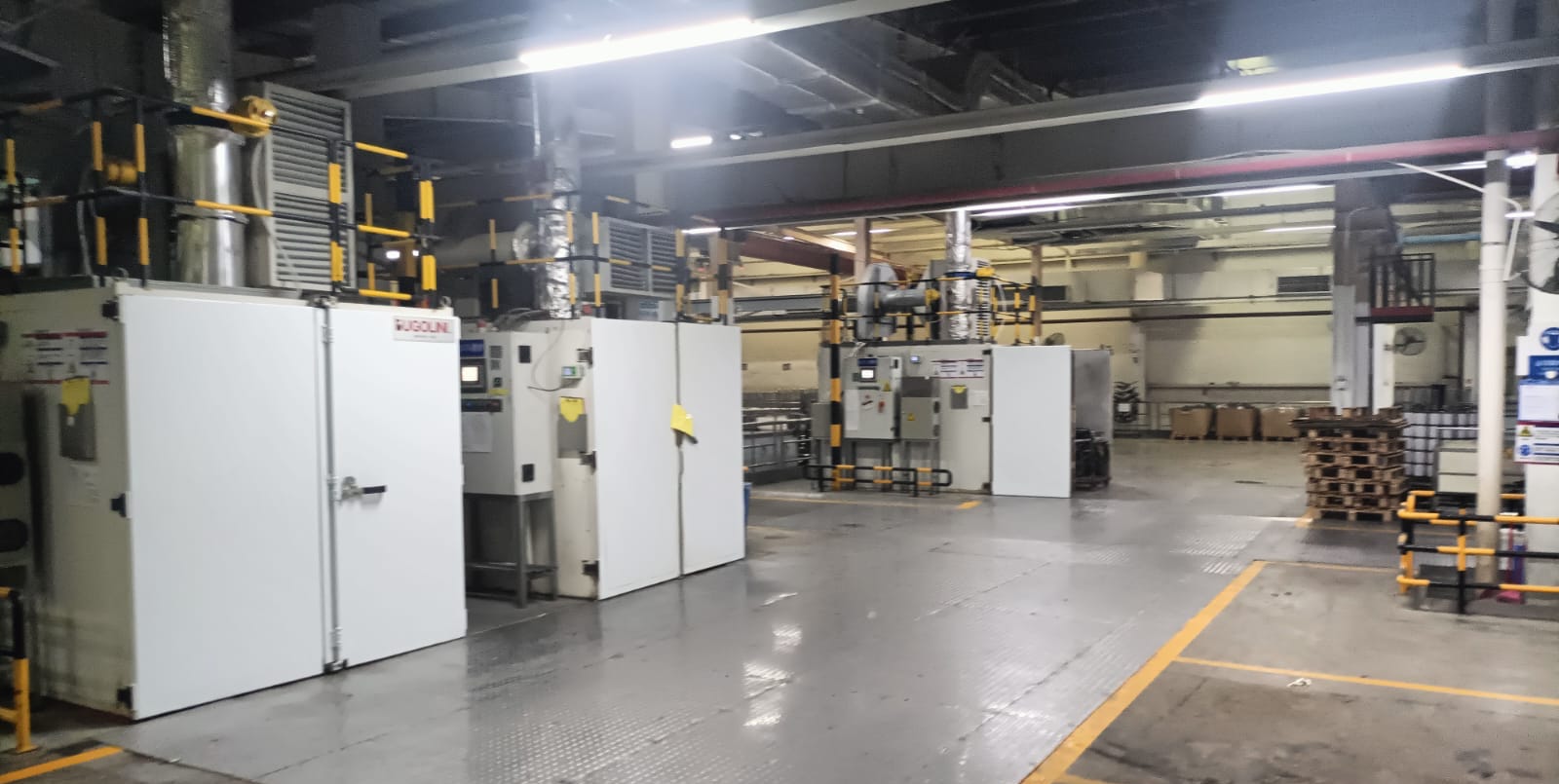

Semi-rapid dryer

EDC 30/1000kg

Hot air Drying and Curing oven, with the following features.
1 or 2 drying chambers, depending from the size of the oven.
Nr. 2 trolleys each chamber: 1 trolley inside the chambers and 1 trolley as spare.
Each chamber can also have 2 trolleys, depending from the size.
Trolleys can also load a complete carrier to save loading and unloading time.
Total loading capacity depending from the model from 36 to 1000 kg.

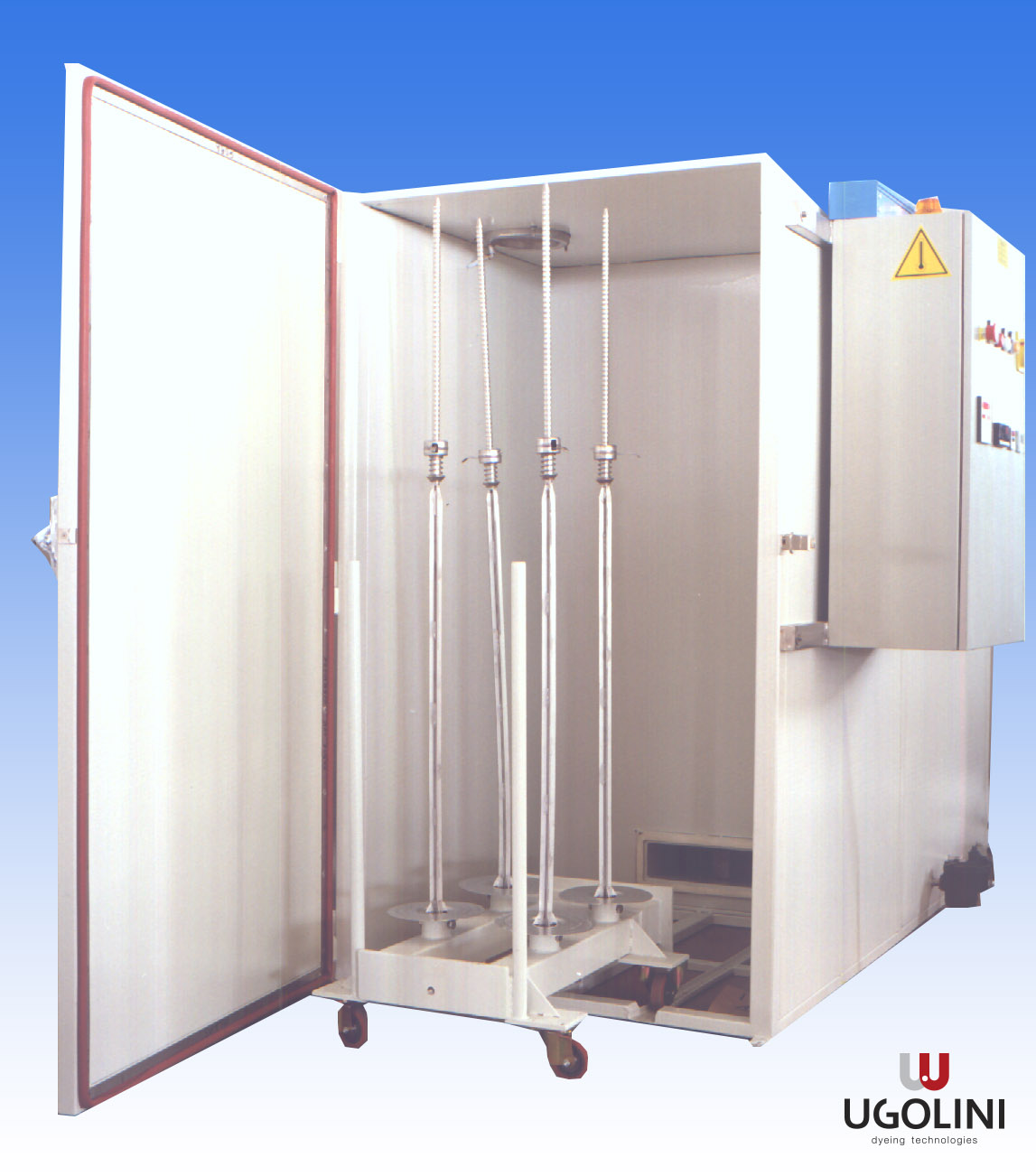

Door with high temperature seal.

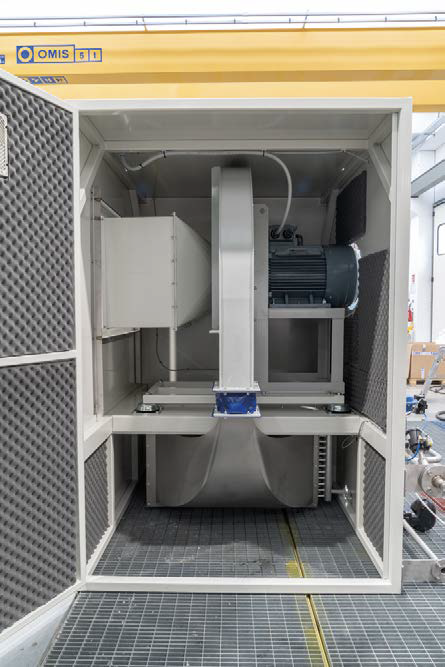

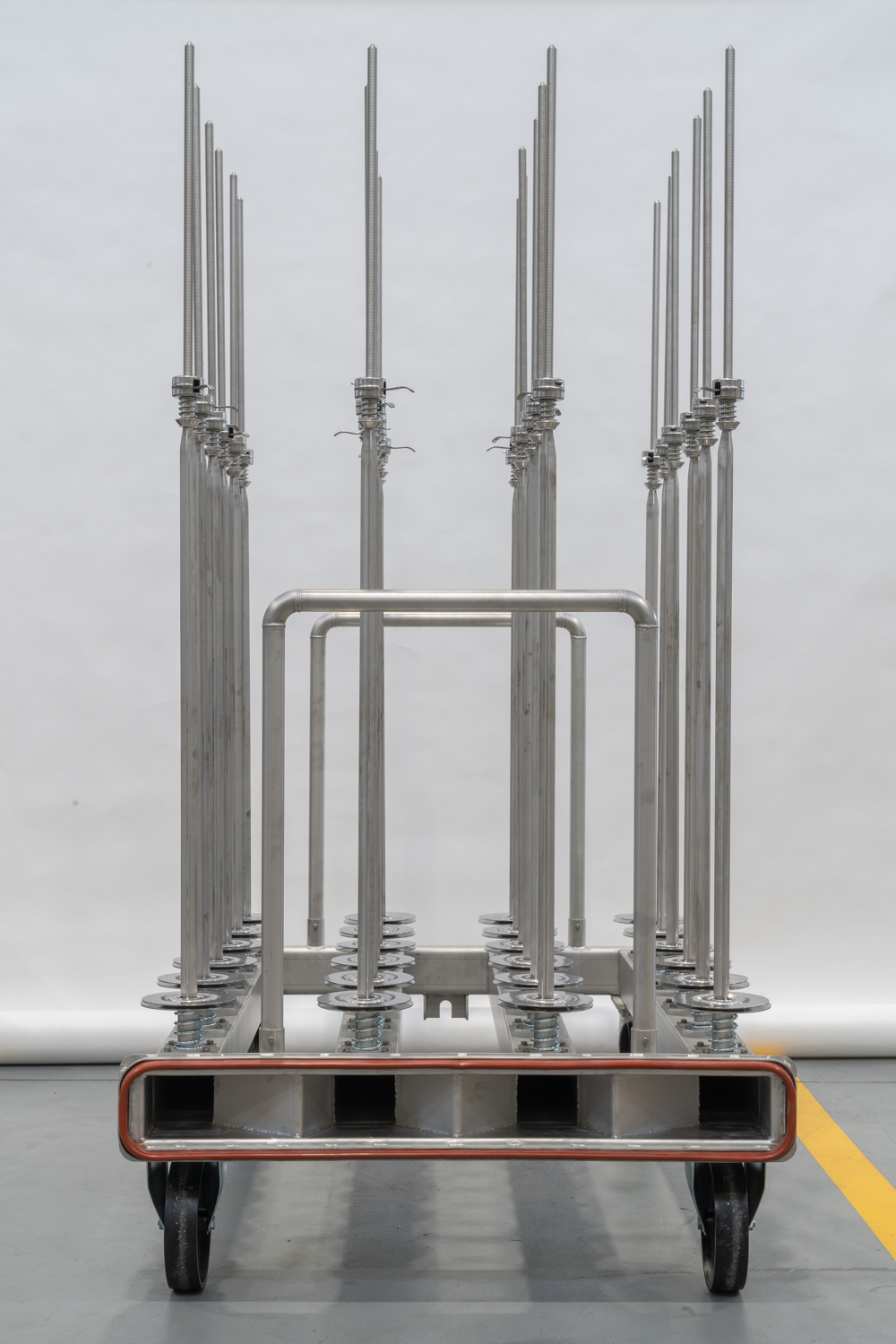

N°2 fixed wheels + n°2 swing wheels in each trolley fitted with handle to move the trolleys. Frame with panels (Internal stainless-steel covering, external in painted iron, insulation between internal and external panels); Inverter to reduce air flow linked with temperature and current loop to control the high prevalence centrifugal fan.
Proportional steam valve with IP converter + condensate discharge.
Conditioning time to cool down. Carbon air filter 3 stages.
Output fumes chimney for evacuation fumes with temperature probe (Max temperature 135° C).

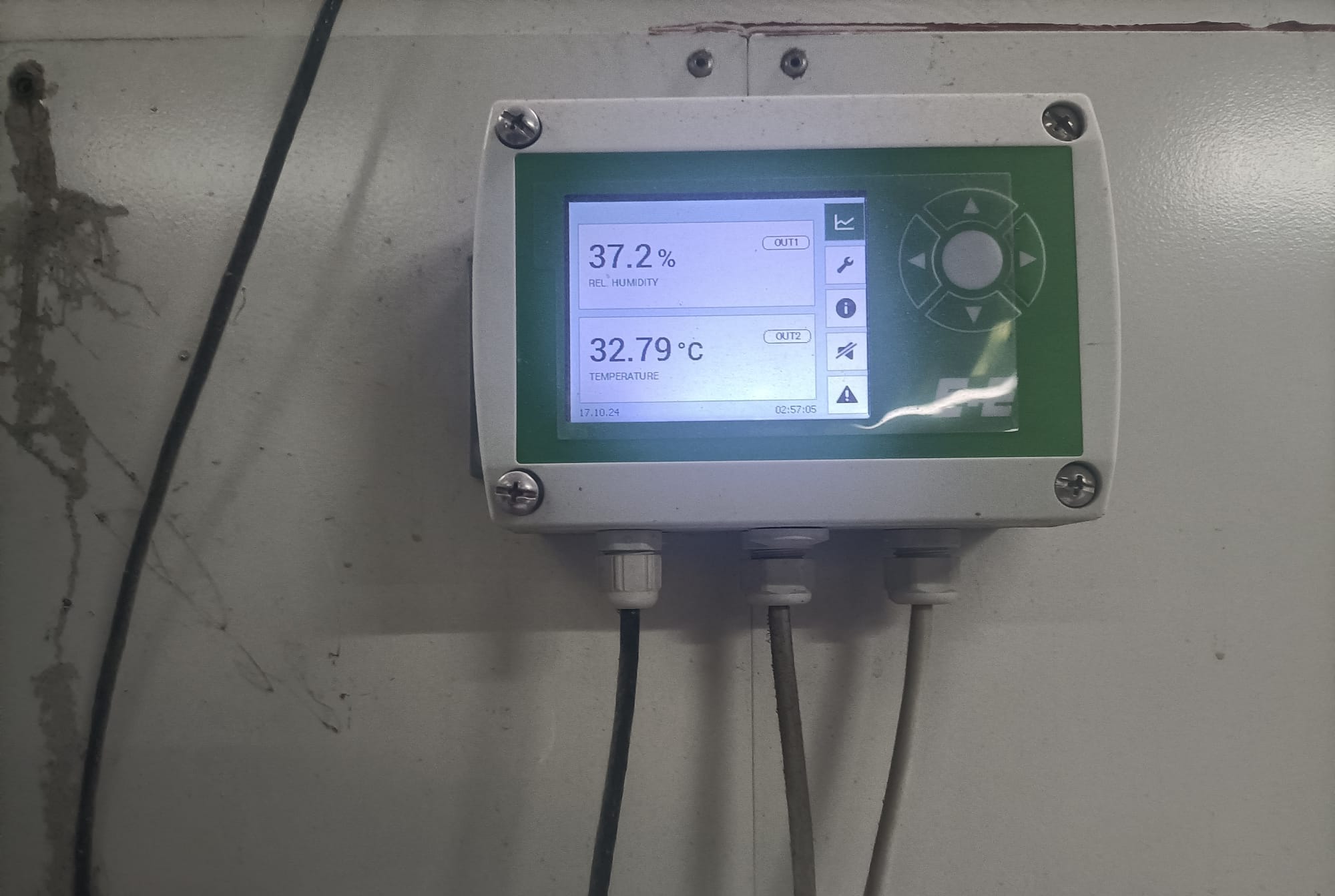

Max working temperature is 130°C and temperature variance in the chamber is below 5° C. Humidity sensor (optional) to stop automatically the cycle.
Hot air recirculation if humidity is less than set point adjustable in % to save steam and power, useful for curing process.
Exhaustion fan.
Electrical panel with all safety elements with Ugolini software.

Dati tecnici

Capacità di carica

da 2 a 1500 kg asciutto

Potenza installata

da 3 a 90 kW

Temperatura max di asciugamento
