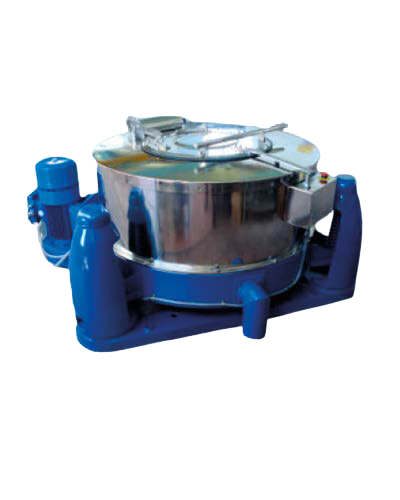

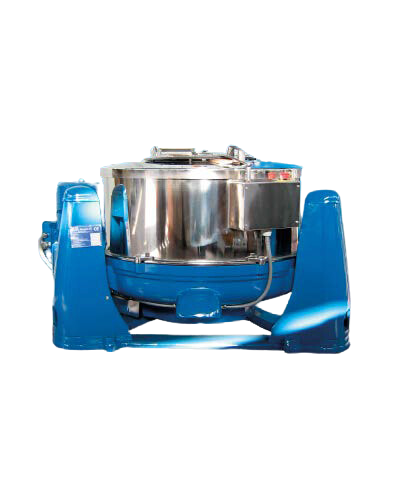

Hydroextractor

Complete series of hydroextractor

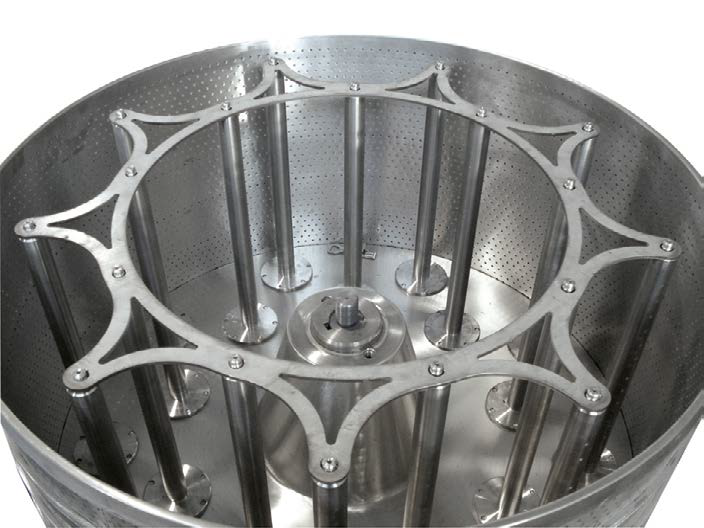

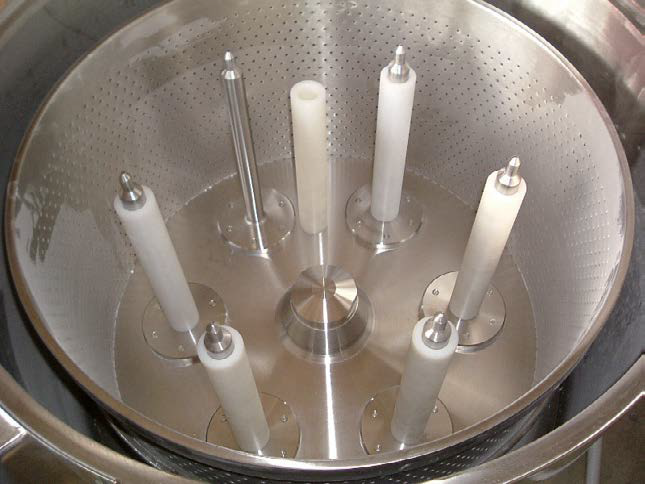

Hydroextractor for fabric, bobbins, hanks, etc… with basket in stainless steel, internal diameter: 400 / 450/ 635 / 900 / 1100 mm.

Cover with safety device max rotation speed 1450 tours/min. with inverter.

Suitable to centrifuge yarn, fabric, hanks de- pending of the carrier.

Modello	Capacità di carica	Potenza	Dimensioni cestello (d/h/V)	Dimensioni macchina (l/p/h)
zp-400	10 kg	1,10 kW	400 mm/350 mm/40 lt	610/515/950 mm
zp-450	12 kg	2,20 kW	450 mm/350 mm/42 lt	800/610/1000 mm
zp-635	20 kg	4,00 kW	718 mm/306-450 mm/120-170 lt	840/1100/1000-1200 mm
zp-900	57 kg	7,50 kW	900 mm/500 mm/300 lt	1740/1350/1000 mm
zp-1100	100 kg	11kW	1100 mm/500 mm/500 lt	1950/1600/1050 mm
